Temperature-regulating Manifolds

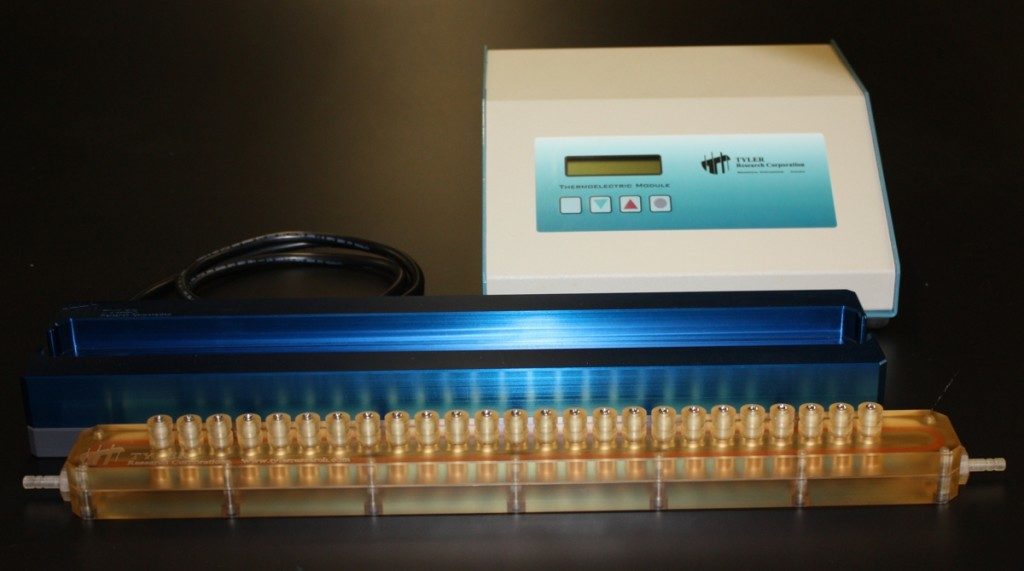

Temperature-regulating manifolds (thermoelectric or recirculated water type) are available for the LPMR-series modified Robbins devices and other TACT Tools. Thermoelectric modules consist of a resistive array or a Peltier heat pump embedded in an anodized aluminum ingot machined to accept one or two specific biofilm devices. A low-voltage, high-current DC circuit under microprocessor control drives the heat pump or resistive array. Solid-state sensors embedded in the aluminum ingot provide feedback to the microprocessor, which functions as a proportional integrating controller. The desired temperature is programmed by means of a front panel keypad, indexing the setpoint in one-degree increments up or down. The setpoint is displayed on an LCD display, along with the actual temperature and the power consumption of the driver circuit.
We also produce liquid-regulated thermal manifolds for use in laboratories that have a recirculating water bath available. These consist of an anodized aluminum ingot as above, machined with a serpentine pattern for fluid flow. In these manifolds temperature is regulated and maintained by the recirculating water bath.
| TM-CHEM500 | Thermal Module, Solid State, for 500ml Chemostat |
| TM-LPMR12 | Thermal Module, Solid State, for Single LPMR-12 TACT Tool |
| TM-LPMR25 | Thermal Module, Solid State, for Single LPMR-25 TACT Tool |
| TM-MPMR10 | Thermal Module, Solid State, for Single MPMR-10 TACT Tool |
| TML-LPMR12 | Thermal Module, Liquid-Regulated, for Single LPMR-12 TACT Tool |
| TML-LPMR25 | Thermal Module, Liquid-Regulated, for Single LPMR-25 TACT Tool |
| TML-MPMR10 | Thermal Module, Liquid-Regulated, for Single MPMR-10 TACT Tool |
Chemostat Culture Systems

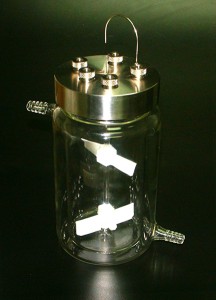

The Tyler Research 500ml chemostat is intended for the growth and maintenance of bacterial cultures for input into laboratory-scale TACT Tools and other modified Robbins device systems. The device consists of a glass vessel (with or without water jacket), a Teflon and glass rotor assembly, and a polysulfone ported cover. There are 5 locking ports on the cover, each of which is capable of accepting and sealing a cylindrical object (plug, probe, tube or thermometer, for example) with diameters of 6mm or ¼”. The cover holds two O-rings to provide a sterile seal with the glass reservoir. Agitation and circulation is provided by indirect drive of the rotor via placement on a standard magnetic stirrer.
A 500ml chemostat is available in a standard (single wall) or water-jacketed (double wall) format for culturing bacteria prior to their infusion into modified Robbins devices.
| CHEM-500SW | Chemostat, 500ml, Single Wall Vessel, Glass /Teflon/Polysulfone |
| CHEM-500DW | Chemostat, 500ml, Double Wall Vessel, Glass /Teflon/Polysulfone |
